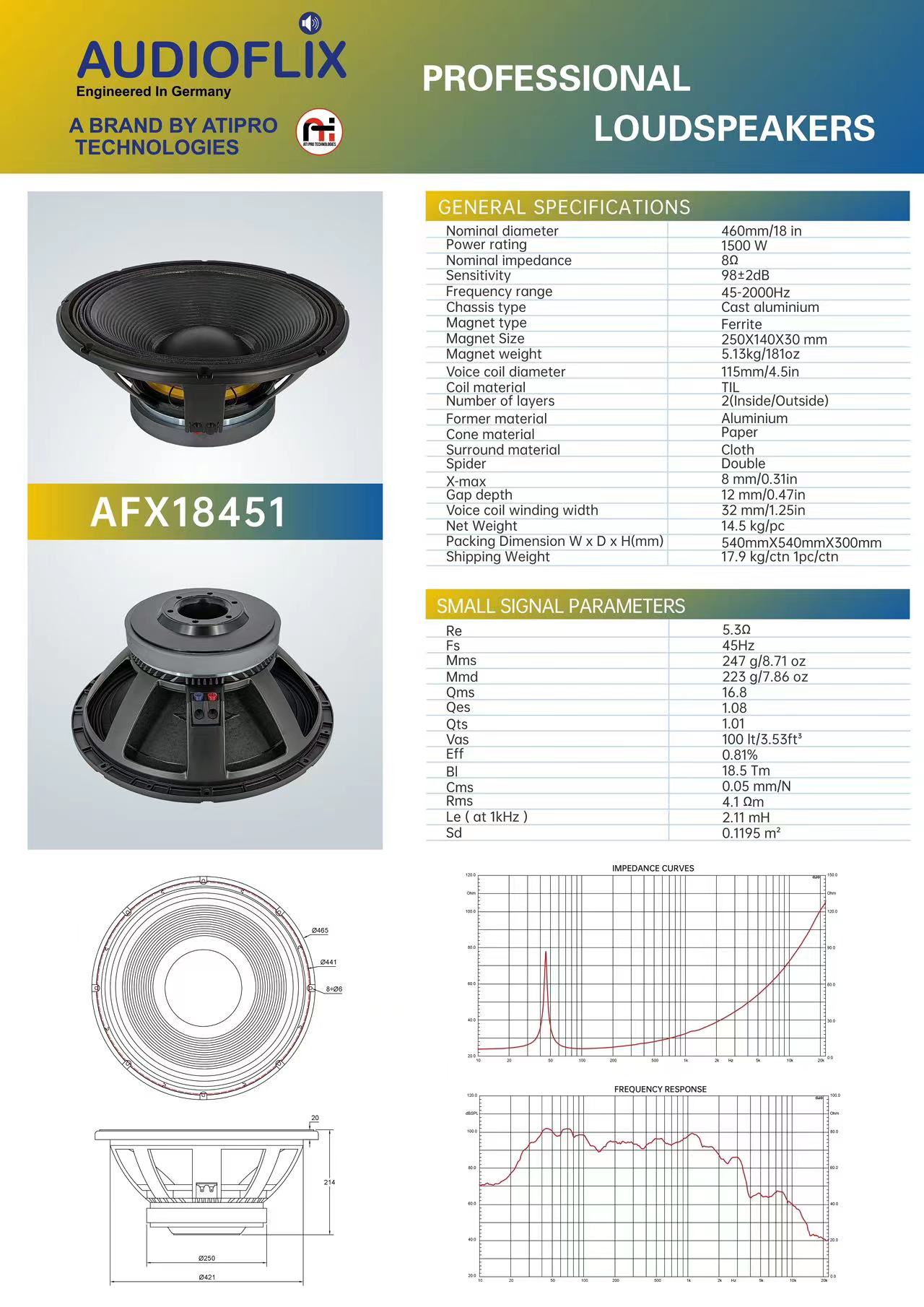

Description
Nominal Diameter – 460mm/18 in
Power Rating – 1500 W
Nominal Impedance – 8Ω
Sensitivity – 98±2dB
Frequency Range – 45-2000Hz
Chassis Type – Cast Aluminum
Magnet Type – Ferrite
Magnet Size – 250X140X30 mm
Magnet Weight – 5.13kg/181oz
Voice coil Diameter – 4.5 inch In/Out
Coil Material – TIL
Number of layers – 2(Inside/Outside)
Former material – Aluminum
Cone material – Paper
Surround material – Cloth
Spider – Double
X-max – 8 mm/0.31in
Gap Depth – 12 mm/0.47in
Voice coil winding width – 32 mm/1.25in
Net Weight – 14.5 kg/pc
Packing Dimension W x D x H(mm) – 540mmX540mmX300mm
Shipping Weight – 17.9 kg/ctn 1pc/ctn
