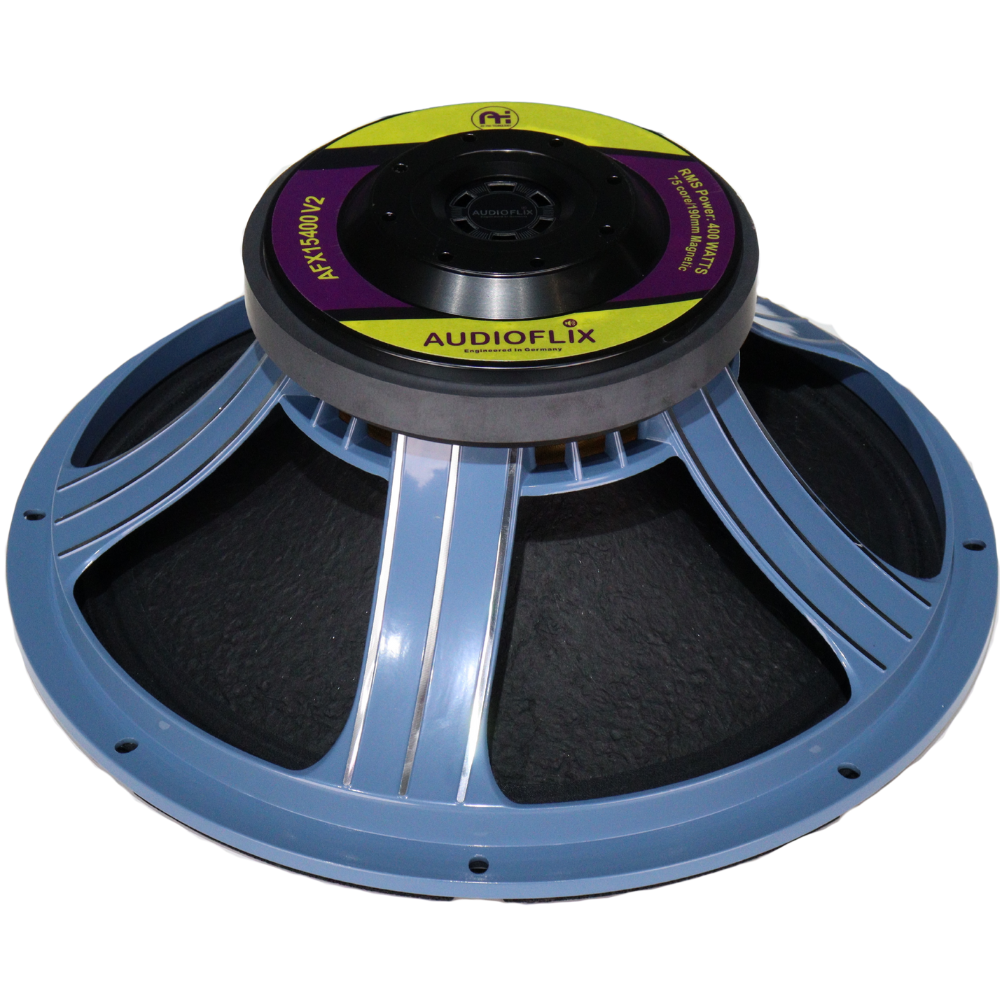

Ferrite DJ Speaker 15 Inch 400 Watt Model- AFX15400V2

Description

AFX15400V2 Ferrite 15 Inch DJ Speaker Features and Specifications

• Nominal Diameter: 380mm / 15 inch, engineered for strong bass and midrange clarity in professional sound setups.

• Power Handling: Rated at 400W continuous and up to 800W peak power for reliable sound performance.

• Nominal Impedance: 8Ω, compatible with standard amplifiers and audio systems.

• Sensitivity: 96±2 dB, ensuring efficient sound reproduction with less power consumption.

• Frequency Range: Covers 50Hz – 2500Hz, delivering deep bass with smooth midrange response.

• Chassis Type: Built with a cast aluminum frame for durability, rigidity and effective heat dissipation.

• Ferrite Magnet Assembly: Fitted with a 190×90×20 mm ferrite magnet weighing 2.2 kg for consistent sound output.

• Voice Coil Design: 75.5mm (3 inch) SV-W voice coil with dual inside/outside 2-layer winding for strength and durability.

• Former Material: Glass fiber former provides high thermal resistance and structural reliability.

• Cone & Surround: High-quality paper cone with durable cloth surround for natural and long-lasting performance.

• Spider System: Single spider suspension ensures stable cone movement and clear sound with minimal distortion.

• Excursion Capability: X-max of 7mm with an 8mm gap depth for precise bass response.

• Voice Coil Winding Width: 18mm, offering effective cooling and long-term stability.

• Weight & Build: Net weight 6.2 kg per unit; rugged build suitable for professional use.

• Packing Dimensions: 420 × 420 × 430 mm per carton, with 2 units per carton (shipping weight 15 kg).
• Ideal For: Perfect for DJ cabinets, PA systems, clubs, auditoriums, outdoor events, live shows and stage sound reinforcement.
