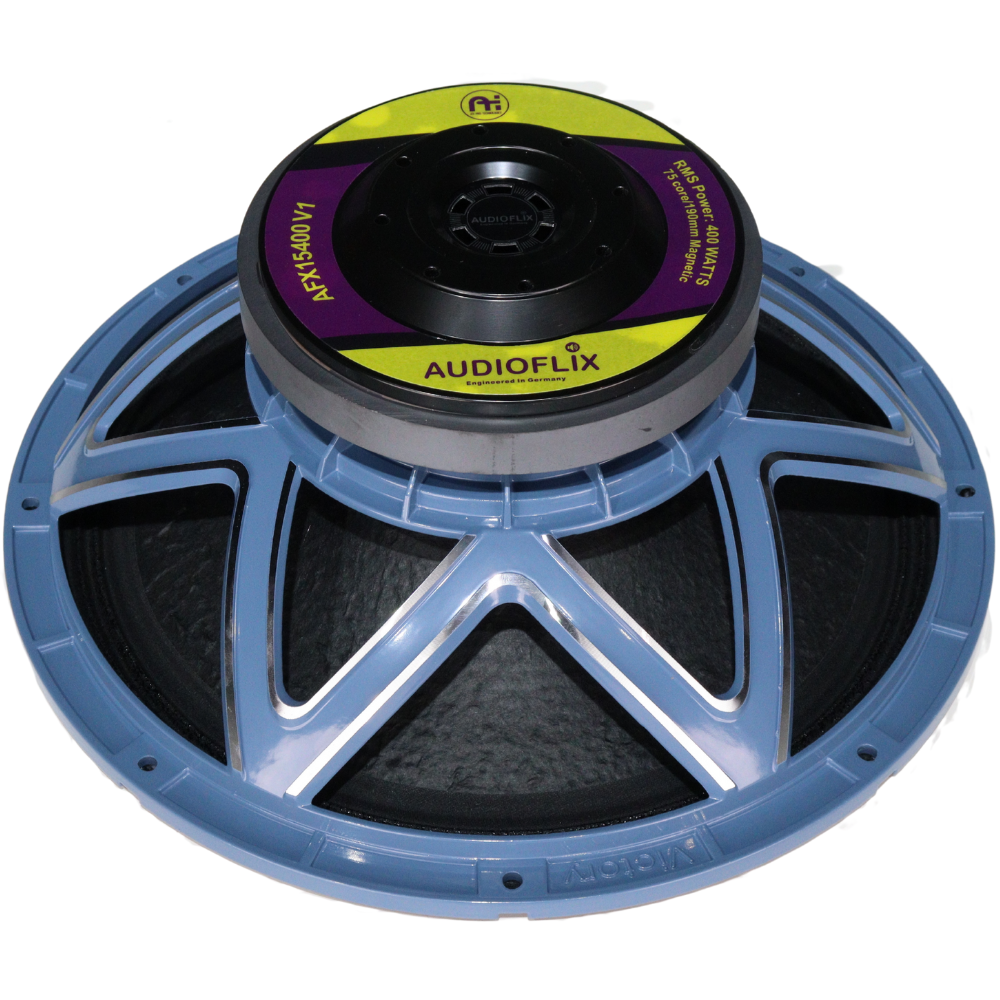

Ferrite DJ Speaker 15 Inch 400 Watt Model- AFX15400V1

Description

AFX15400V1 Ferrite 15 Inch DJ Speaker Features and Specifications

• Nominal Diameter: 380mm / 15 inch, ideal for versatile sound reinforcement with balanced bass and midrange.

• Power Handling: Rated at 400W continuous and up to 800W peak power for reliable performance in professional setups.

• Nominal Impedance: 8Ω, ensuring compatibility with most amplifiers and audio systems.

• Sensitivity: 96±2 dB, offering efficient sound output with minimal power usage.

• Frequency Range: Covers 50Hz – 2500Hz, delivering deep bass with clear midrange response.

• Chassis Type: Cast aluminum frame for high durability, rigidity and superior heat dissipation.

• Ferrite Magnet Assembly: Equipped with a 190×90×20 mm ferrite magnet weighing 2.2 kg, providing stable and powerful sound output.

• Voice Coil Design: 75.5mm (3 inch) SV-W voice coil with dual inside/outside 2-layer winding for enhanced strength and thermal stability.

• Former Material: Glass fiber former ensures high thermal resistance and structural durability.

• Cone & Surround: Paper cone with cloth surround for natural sound reproduction and long-lasting performance.

• Spider System: Single spider suspension for controlled cone movement and distortion-free output.

• Excursion Capability: X-max of 7mm with 8mm gap depth for accurate bass response.

• Voice Coil Winding Width: 18mm for efficient cooling and durability under continuous usage.

• Weight & Build: Net weight of 6.2 kg per unit; rugged construction suited for mobile and fixed installations.

• Packing Dimensions: 420 × 420 × 430 mm per carton, with 2 units per carton (shipping weight 15 kg).

• Ideal For: Designed for DJ cabinets, professional PA systems, clubs, auditoriums, live performances and stage sound reinforcement.
