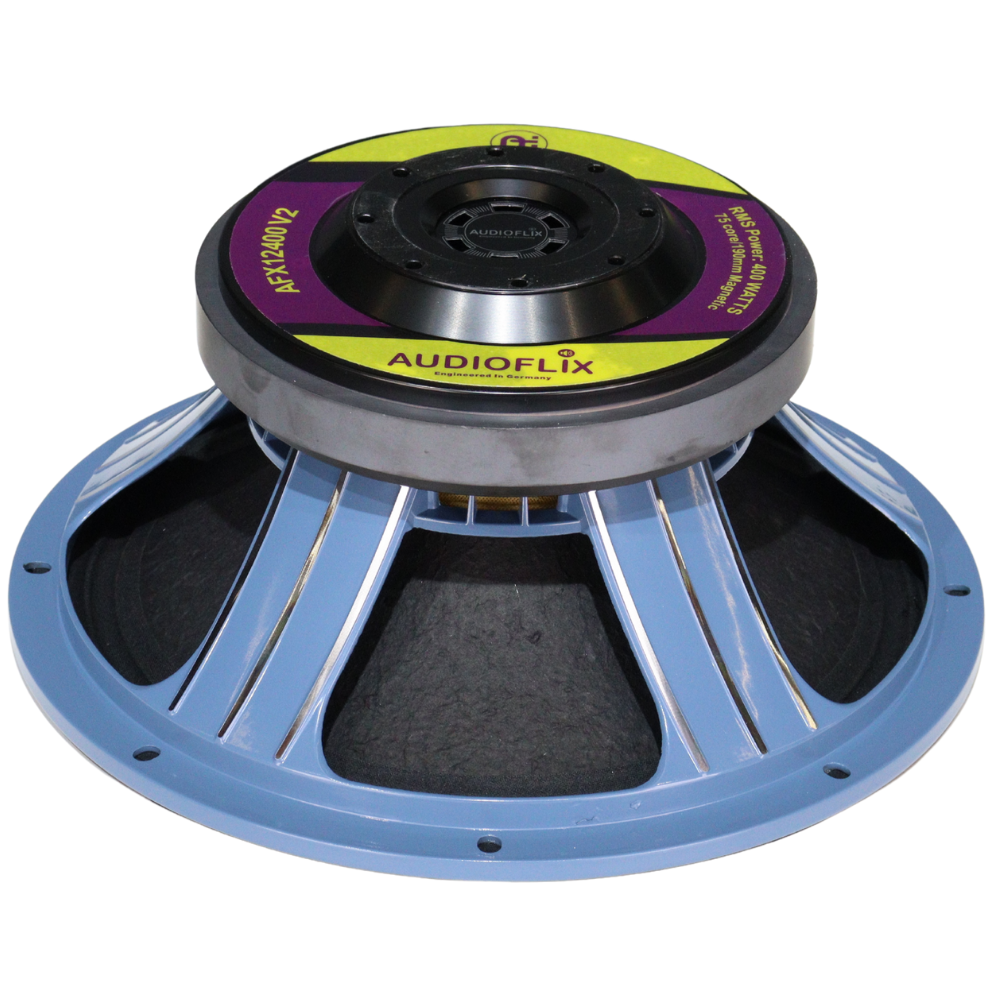

Ferrite DJ Speaker 12 Inch 400 Watt Model- AFX12400V2

Description

AFX12400V2 Ferrite 12 Inch DJ Speaker Features and Specifications

• Nominal Diameter: 320mm / 12 inch, delivering compact size with powerful sound output.

• Power Handling: Rated at 400W continuous and up to 800W peak power, ideal for professional DJ and PA applications.

• Nominal Impedance: 8Ω, ensuring compatibility with most amplifiers and sound systems.

• High Sensitivity: Offers 98±2 dB sensitivity, providing efficient sound reproduction with lower power usage.

• Frequency Range: Operates from 50Hz – 3500Hz, producing strong bass and clear midrange frequencies.

• Durable Chassis: Built with cast aluminum frame for high rigidity, durability, and effective heat dissipation.

• Ferrite Magnet Assembly: Uses a robust ferrite magnet (190×90×20 mm, 2.2 kg) to deliver powerful bass response and stable performance.

• Voice Coil Design: Equipped with a 75.5mm (3 inch) SV-W voice coil featuring dual inside/outside 2-layer winding for enhanced power handling and reliability.

• Former Material: Glass fiber former ensures strength and heat resistance during extended operation.

• Cone & Surround: Paper cone with cloth surround delivers natural sound reproduction and durability under heavy usage.

• Spider System: Single spider provides stable suspension for accurate cone movement and clean sound.

• Excursion Capability: X-max of 6.5mm with 8mm gap depth ensures smooth cone travel and distortion-free sound at higher outputs.

• Voice Coil Winding Width: 17mm for efficient thermal management and long-lasting performance.

• Weight & Build: Net weight 6.9 kg per unit; rugged construction suited for both mobile and installed systems.

• Packing Dimensions: 345 × 345 × 345 mm per carton, with 2 units per carton (shipping weight 15.5 kg).

• Ideal For: Perfect for DJ setups, PA systems, clubs, live stage performances, auditoriums, outdoor events and professional sound reinforcement applications.
