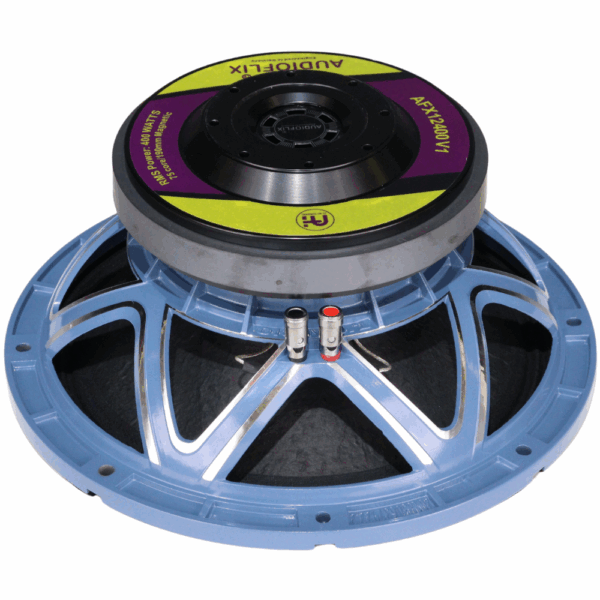

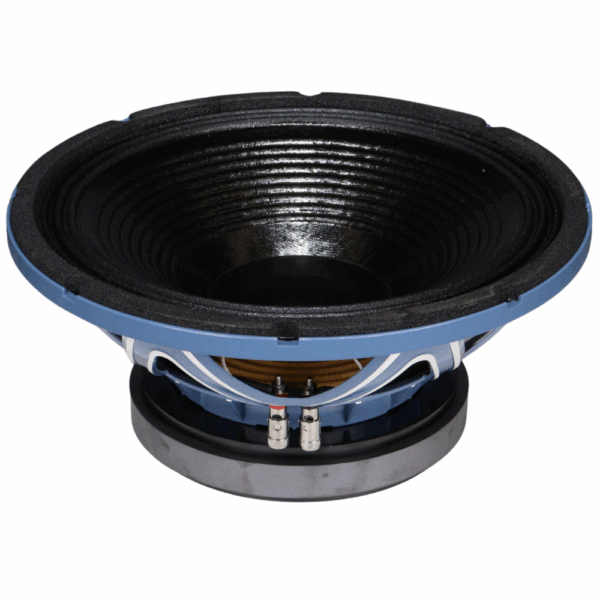

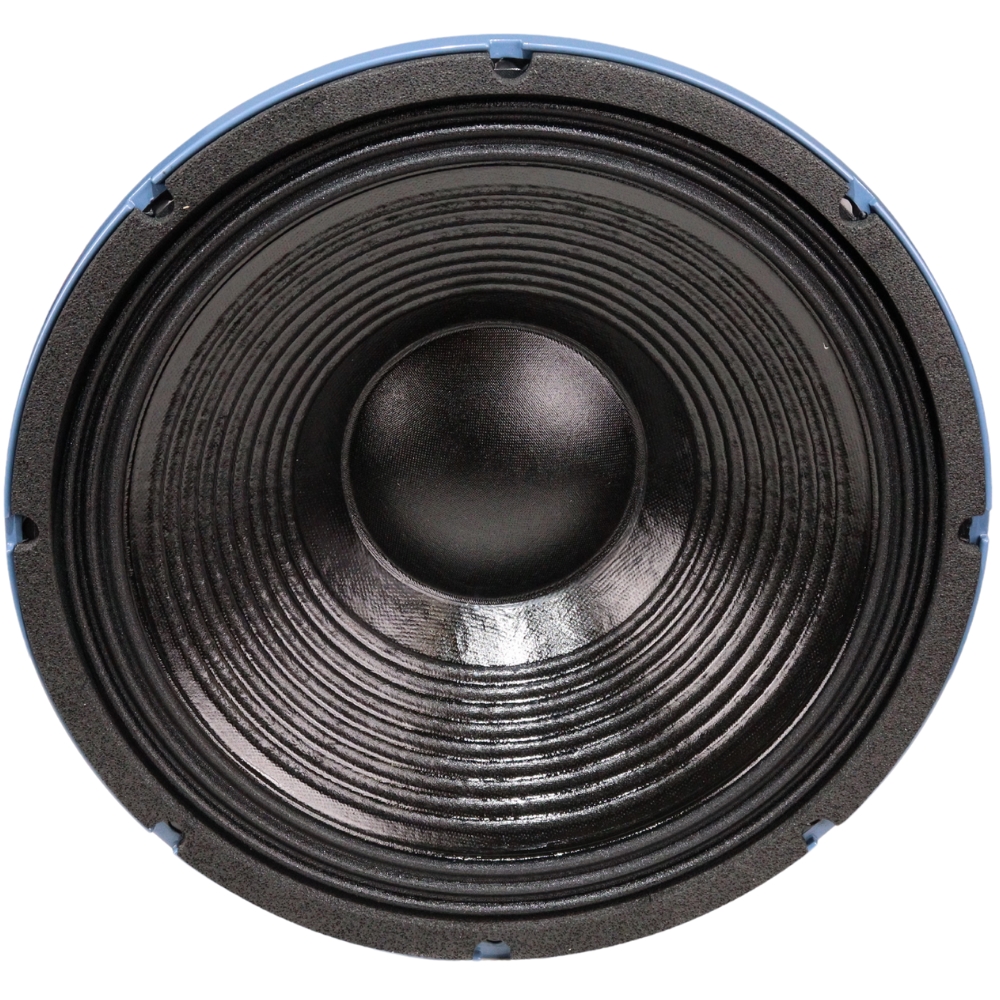

Ferrite DJ Speaker 12 Inch 400 Watt Model- AFX12400V1

Description

AFX12400V1 Ferrite 12 Inch DJ Speaker Features and Specifications

• Nominal Diameter: 320mm / 12 inch, designed for compact yet powerful sound reinforcement.

• Power Handling: Rated at 400W continuous and up to 800W peak power, delivering strong and reliable performance.

• Nominal Impedance: 8Ω, compatible with a wide range of professional amplifiers and sound systems.

• High Sensitivity: Offers 98±2 dB sensitivity, ensuring efficient sound output with minimal power consumption.

• Frequency Range: Covers 50Hz – 3.5kHz, ideal for mid-bass and vocal clarity in DJ and PA systems.

• Durable Chassis: Built with a cast aluminum frame for maximum strength and heat dissipation.

• Ferrite Magnet System: Equipped with a robust ferrite magnet (190×90×20 mm, 2.2 kg) for consistent performance and powerful bass response.

• Voice Coil Design: Features a 75.5mm (3 inch) SV-W voice coil with inside/outside 2-layer winding for high power handling and durability.

• Former Material: Glass fiber former for heat resistance and structural integrity during long performance hours.

• Cone & Surround: High-quality paper cone with durable cloth surround for accurate sound reproduction and longevity.

• Spider System: Single spider design provides stable cone movement and precise sound control.

• Excursion Capability: X-max of 6.5mm with a gap depth of 8mm, ensuring smooth performance at high volumes.

• Winding Width: 17mm voice coil winding width for enhanced thermal and mechanical reliability.

• Compact & Reliable Build: Net weight of 6.9 kg per unit; packaged 2 pcs per carton with total shipping weight of 15.5 kg.

• Packing Dimensions: Each unit packed in 345 × 345 × 345 mm carton for safe transport and handling.

• Ideal For: Perfect choice for high-performance subwoofers, DJ bass cabinets, professional PA systems, live shows, auditoriums, nightclubs and concert stages.
