DJ Amplifier 8100 Watt Model FX 8000

Description

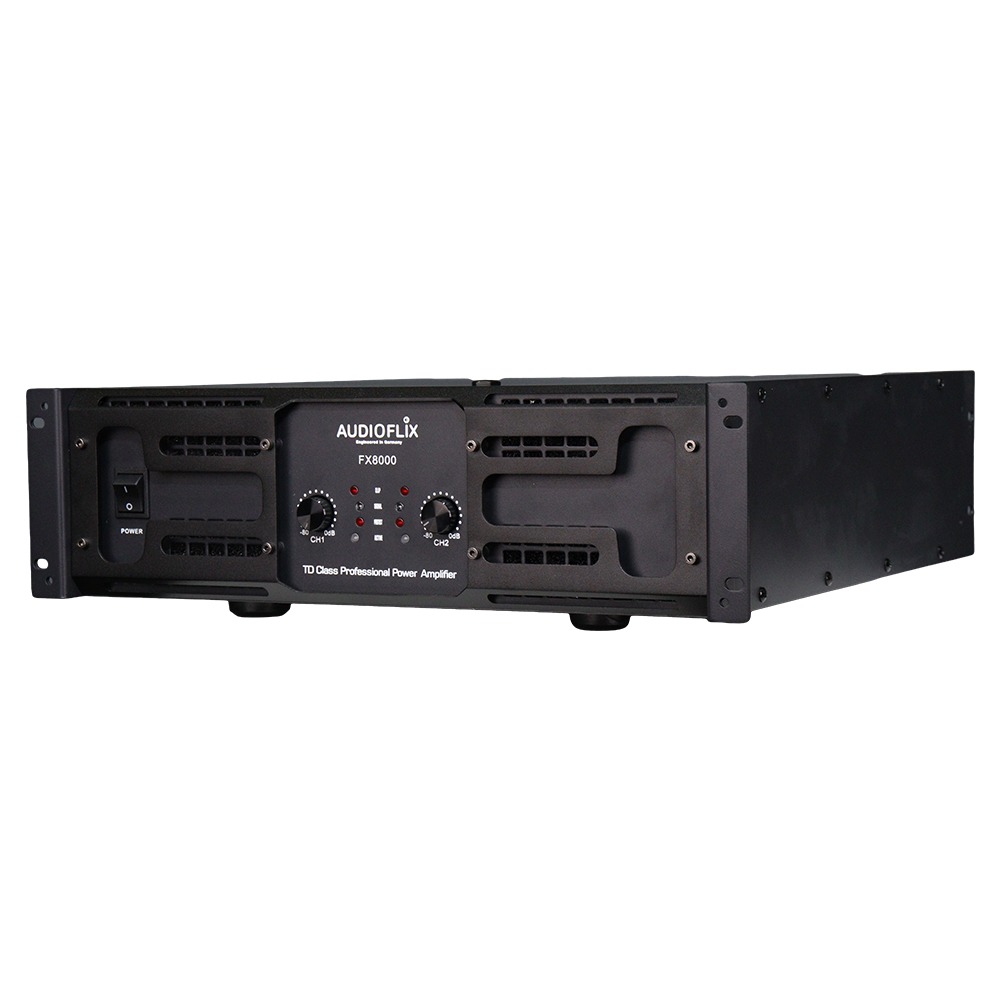

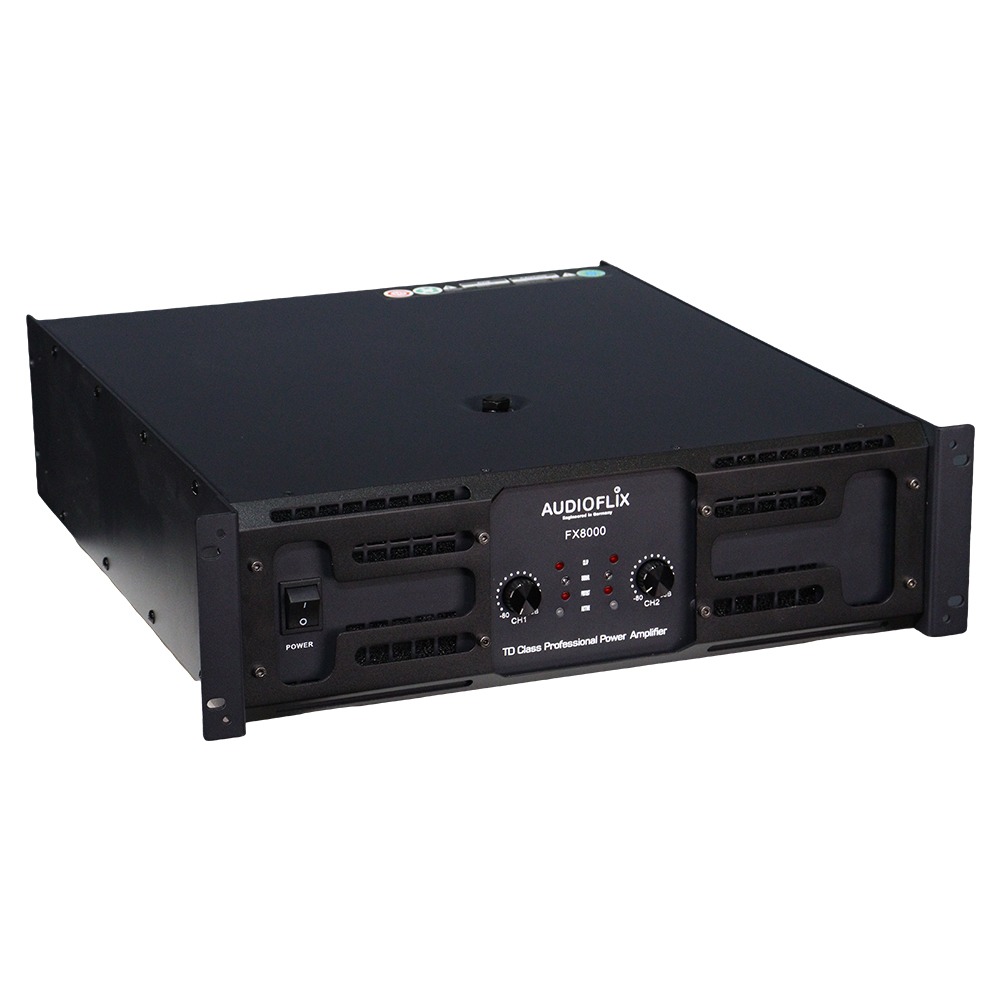

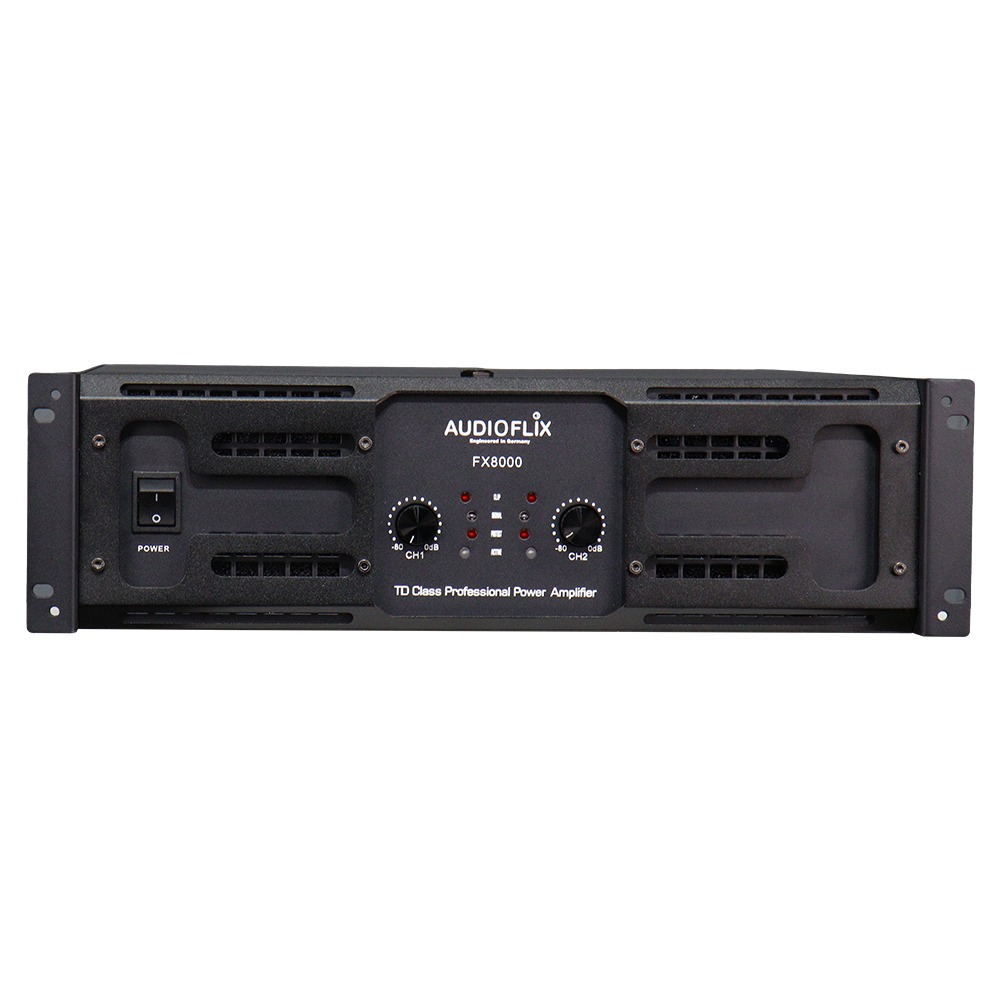

FX8000 Professional Power Amplifier

The FX8000 is a high-performance professional power amplifier engineered for large-scale sound reinforcement, touring, installations, and demanding audio environments. With exceptional power output, ultra-low distortion, and robust protection features, the FX8000 delivers clean, reliable, and dynamic sound for any application.

Unmatched Power & Performance

• Stereo Output Power:
  • 2 × 1800W @ 8Ω
  • 2 × 2700W @ 4Ω
  • 2 × 4050W @ 2Ω

• Bridge Mono Power:
  • 5400W @ 8Ω
  • 8100W @ 4Ω

Designed to maintain stability even under the most demanding loads, the FX8000 ensures consistent performance at any impedance.

Precision Audio Quality

• Frequency Response: 20Hz – 20kHz (±0.5dB)

• THD+N: < 0.08% (8Ω, 1kHz, 1/4 output)

• Slew Rate: > 10V/μs

• Signal-to-Noise Ratio: > 110dB

• Damping Factor (8Ω, 1kHz): > 1500

These characteristics ensure exceptional clarity, tight low-frequency control, and detailed sound reproduction.

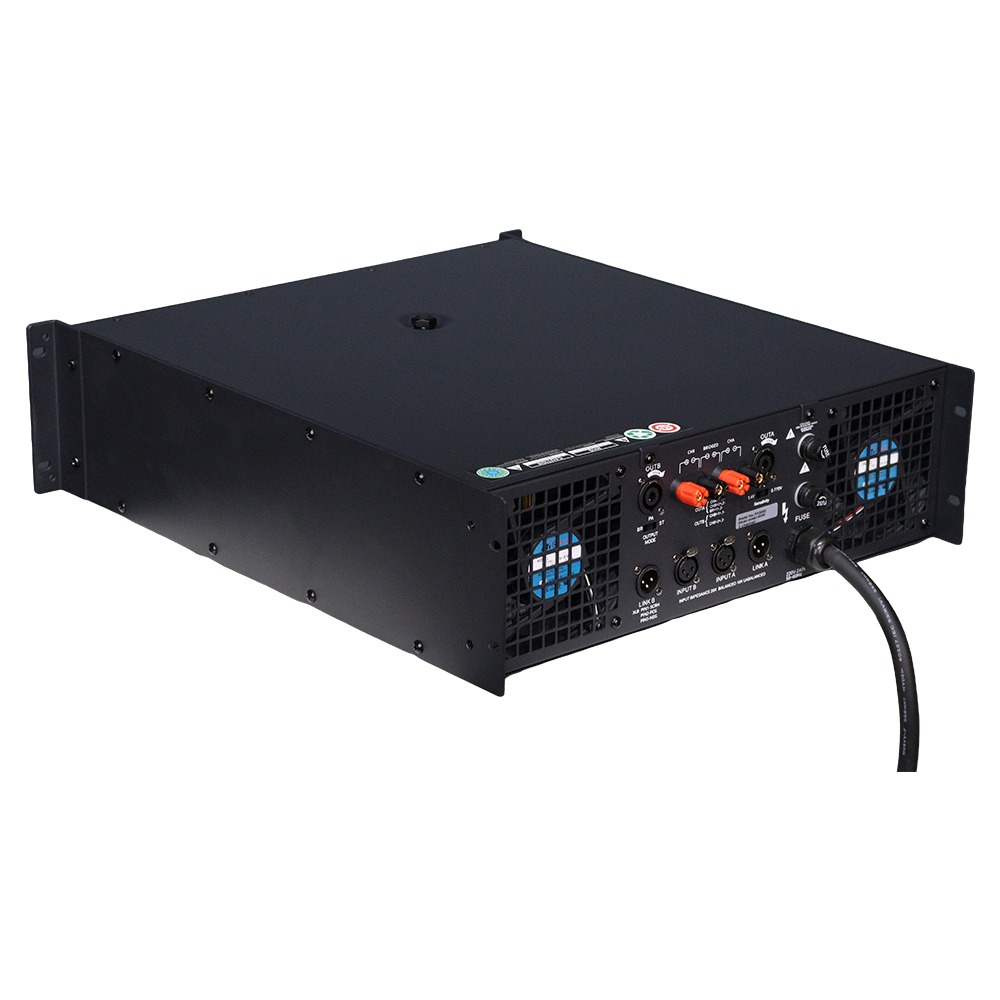

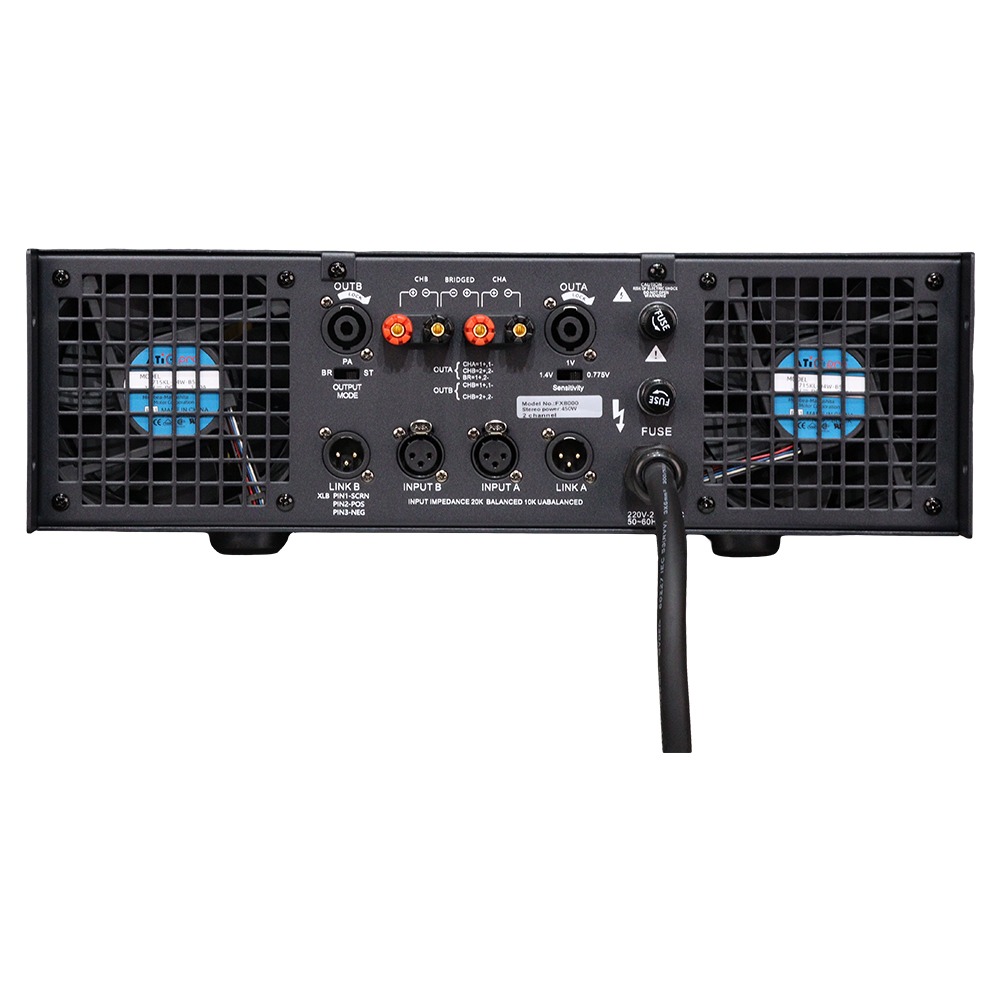

Professional Connectivity

• Input Connectors: 3-pin XLR, electronically balanced (per channel)

• Link Connectors: 3-pin male XLR

• Output Socket: Neutrik® Speakon connectors

• Input Impedance: 20kΩ balanced / 10kΩ unbalanced

Advanced Class TD Circuit Design

The Class TD output circuit combines the efficiency of Class D with the audio fidelity of traditional Class AB, providing high power output with reduced heat and power consumption.

Comprehensive Protection System

Built-in intelligent protection includes:

• Short circuit protection

• Open circuit protection

• Overheat and overload protection

• DC protection

• Ultrasonic (super-sonic) frequency protection

This guarantees safe operation under all conditions.

Power & Build

• Power Requirement: AC 200–240V, 50/60Hz

• Transport Dimensions: 67.8 × 55 × 23 cm

• Net Weight: 36 kg

• Gross Weight: 40 kg

Constructed with durability in mind, the FX8000 is ready for rigorous professional use.
